Lightweight FRP Honeycomb Panel Glossy FRP Truck Body Panels

Brand Name : WDF

Model Number : WDF-FPHP

Certification : ISO

Place of Origin : Foshan,China

MOQ : 100sqm

Price : 23-45usd/sqm

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000 SQM per Month

Delivery Time : 15-25 working days

Packaging Details : protective film+wooden case

Product : FRP PP Honeycomb Panel

Skin : FRP （GRP）Sheet

Core : PP Honeycomb Core

Surface : Gelcoated

Thickness : 6-100mm

Application : Environmental Protection, Rigid Truck Body, Trailer, Container, Wall, Toilet

Color : RAL Color or Pantone

Bonding : Negative Pressure

Contact Now

Glossy Light-Weight FRP Coated PP Honeycomb Panel For Truck Body

Definition

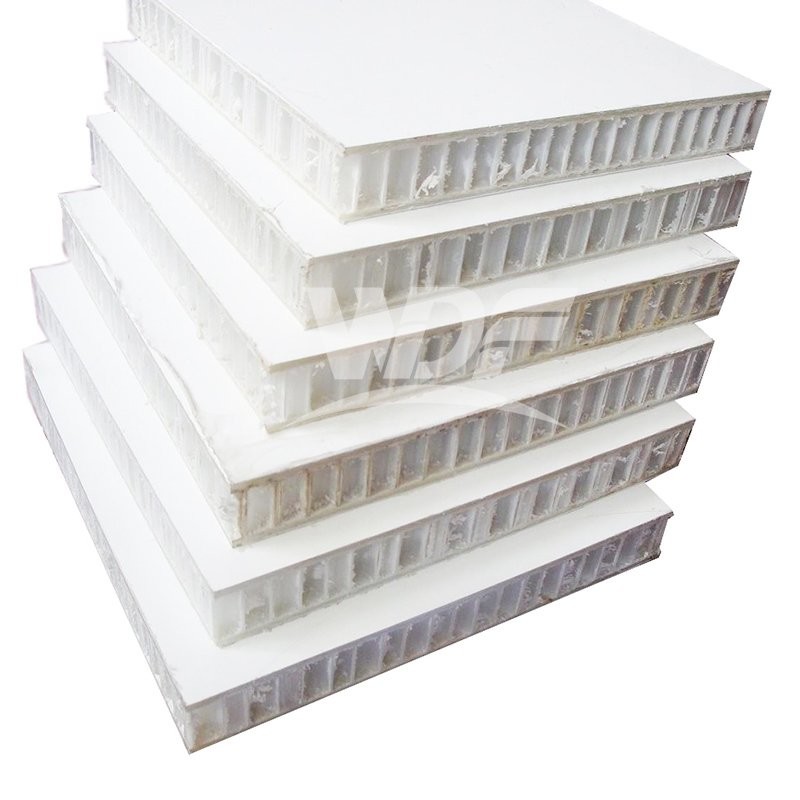

FRP PP hoenycomb is composed of FRP skin on each side and polypropylene core inbetween.

PP honeycomb core is not only very light but also provides superior sound deadening qualities over aluminum and steel construction.

The waterproof core will also provide decades of useful panel life in almost any application, environment, or climate.FRP skin is strong

and high impact resistance.Honeycomb core FRP panels are becoming extremely popular in today’s truck body and trailer designs.

Lighter weight means greater payload and better fuel economy.

Panel Composition

Item	FRP PP Honeycomb Panel
Core Material	pp Honeycomb
FRP Thickness	1-3mm
Core thickness	5-100mm
Width	≤2500mm
Length	≤12000mm
Features	Price: higher Insulation: Middle Strength: higher

Advantages

A seamless one-piece design
Extremely strong and durable
Custom manufactured to your specifications
Verstaile FRP skin finish

No.	Item	Data
1	Static strength Mpa≥	18
2	Elastic Modulus Mpa≥	1500
3	Barcol hardness ≥m2	40
4	Impact strength KJ/m2	50
5	Edgewise compressive strength Mpa≥	10
6	Flatwise tension strength Kpa≥	450
7	Flatwise compression strength Mpa≥	1.5

No.	Thickness of Panel (mm)	Weight (kg/m2)
1	15	7.5
2	18	8
3	21	8.5

Applications

>> Refrigerator Van & Truck Body
>> Sentry box & Mobile Toilets
>> Caravan & RV Panel
>> Compartment & Partition Wall
>> Cattle Sheep Shed & Dog Kennel

Why choose WDF?

1:We produce honeycomb panel with more than 10 years experience.

We have professional team to offer clients total solution from design to finish, provide customer individual care.

2.Overall control over the whole production process from aluminum coils to finished panels.

We have production base of aluminum coils, honeycomb cores, aluminum sheet and composite panels.

3.Our team is dynamic, young, motivated, customer-oriented and diverse and you can reach us at 24/7.

4.Our products are tested , so you can rest assured that our quality is guaranteed.
